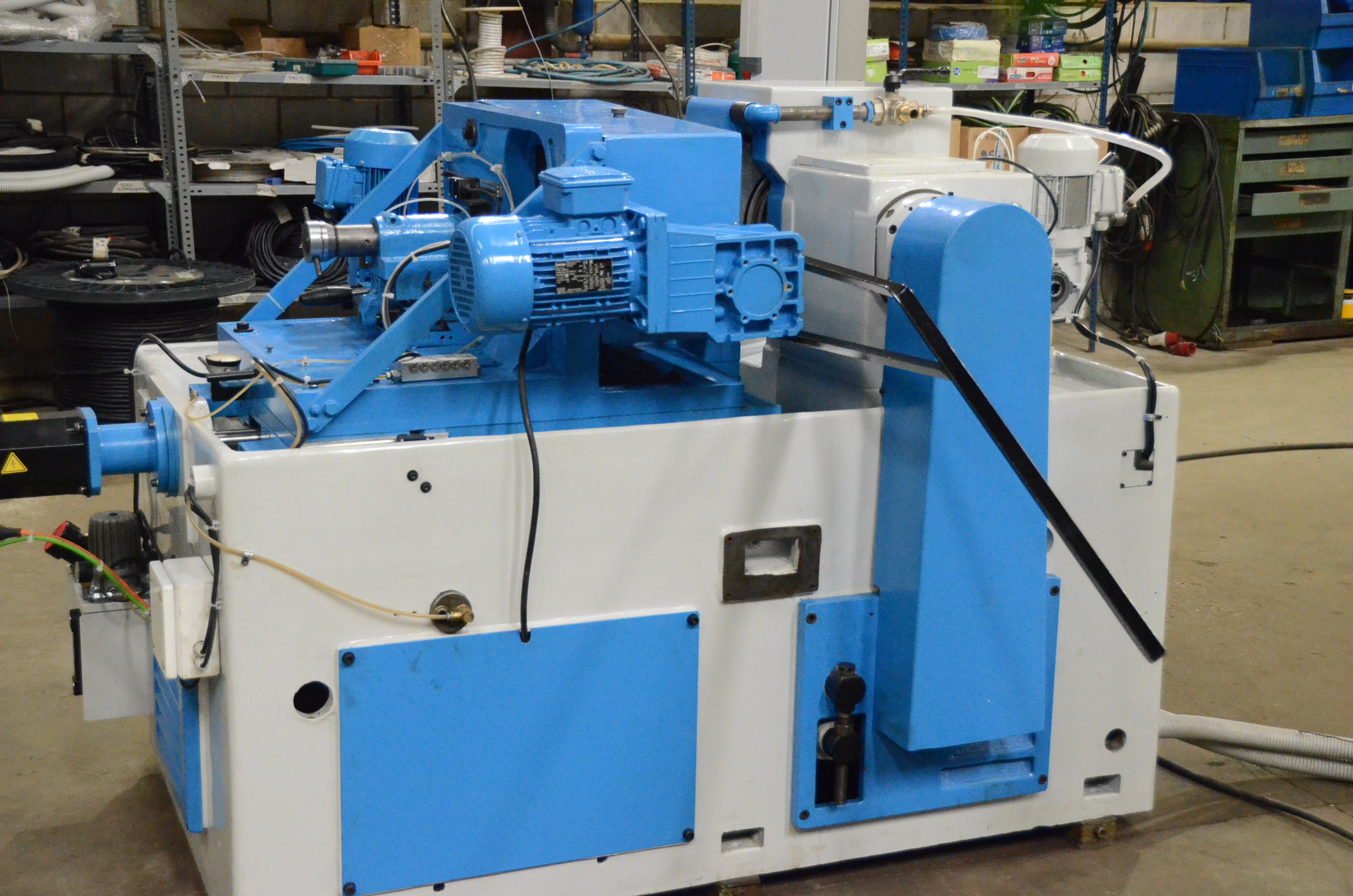

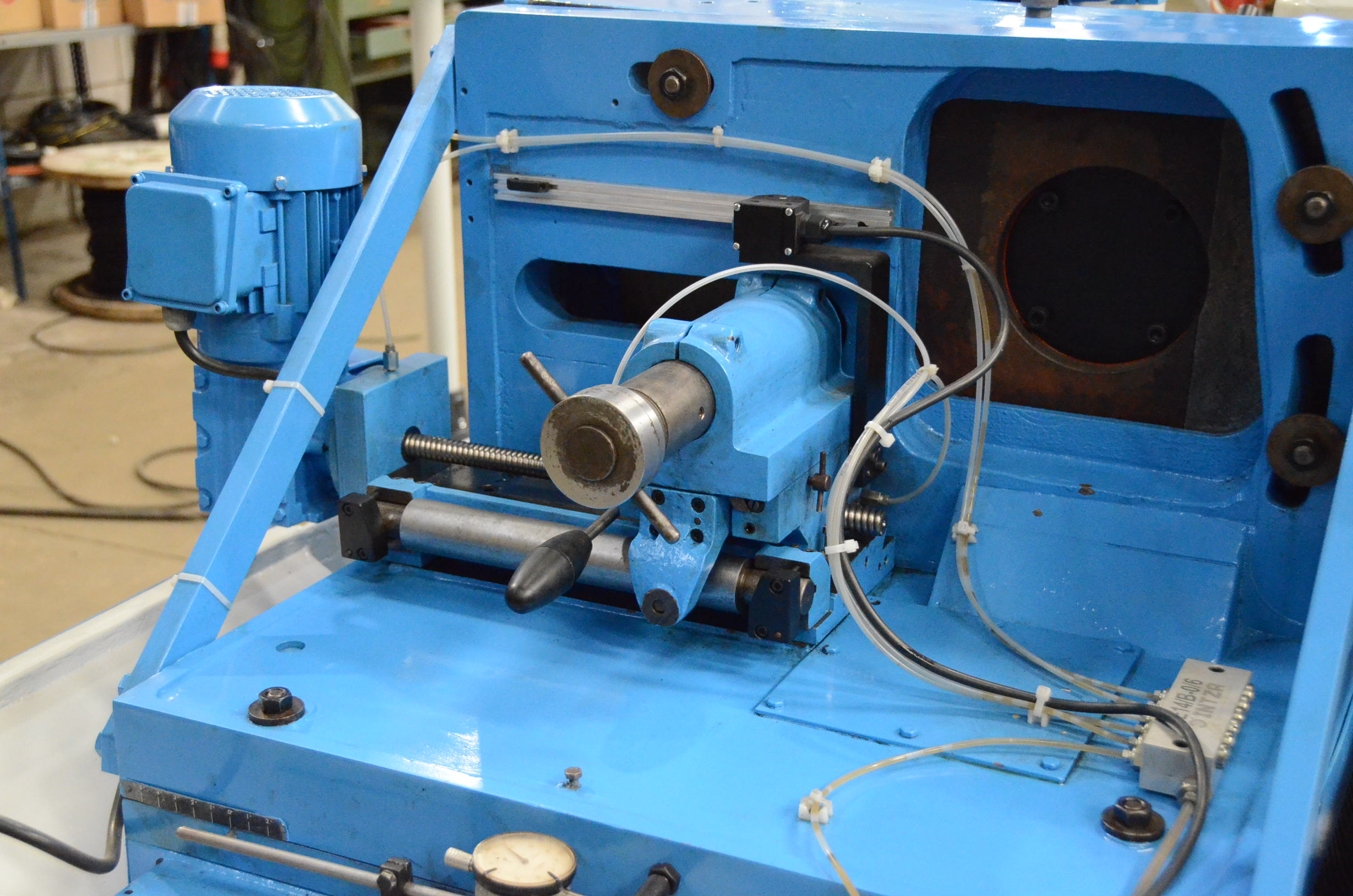

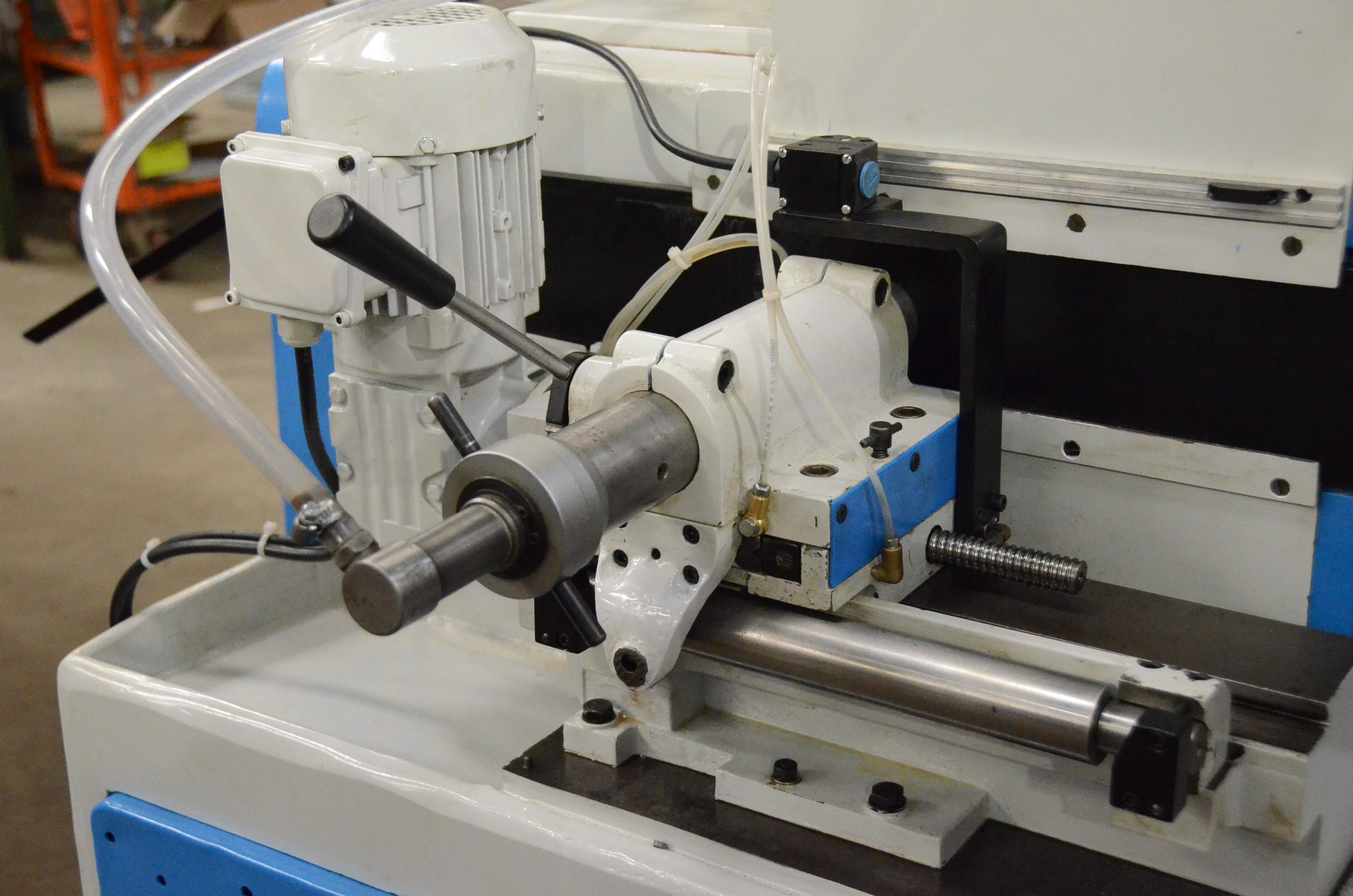

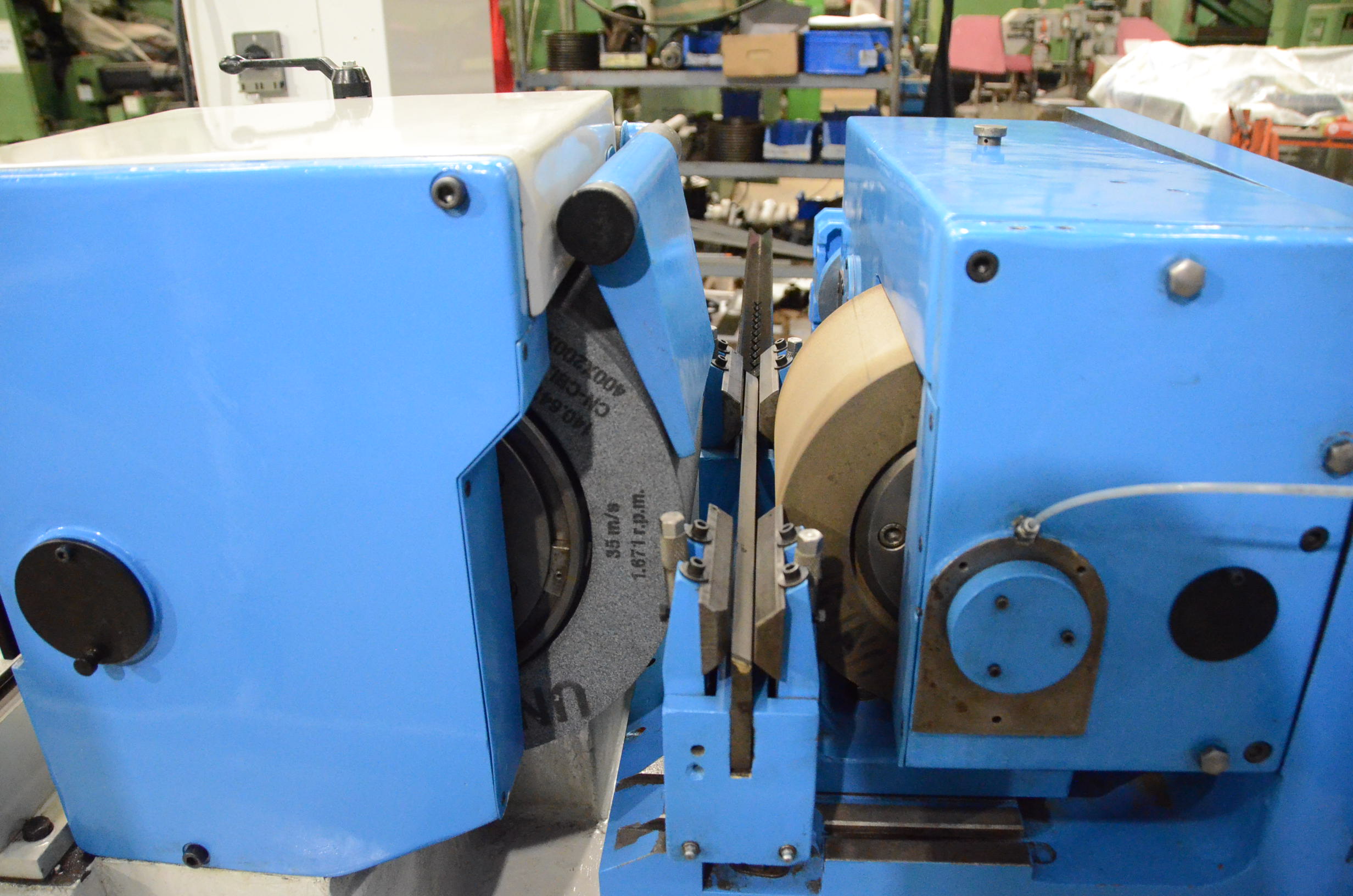

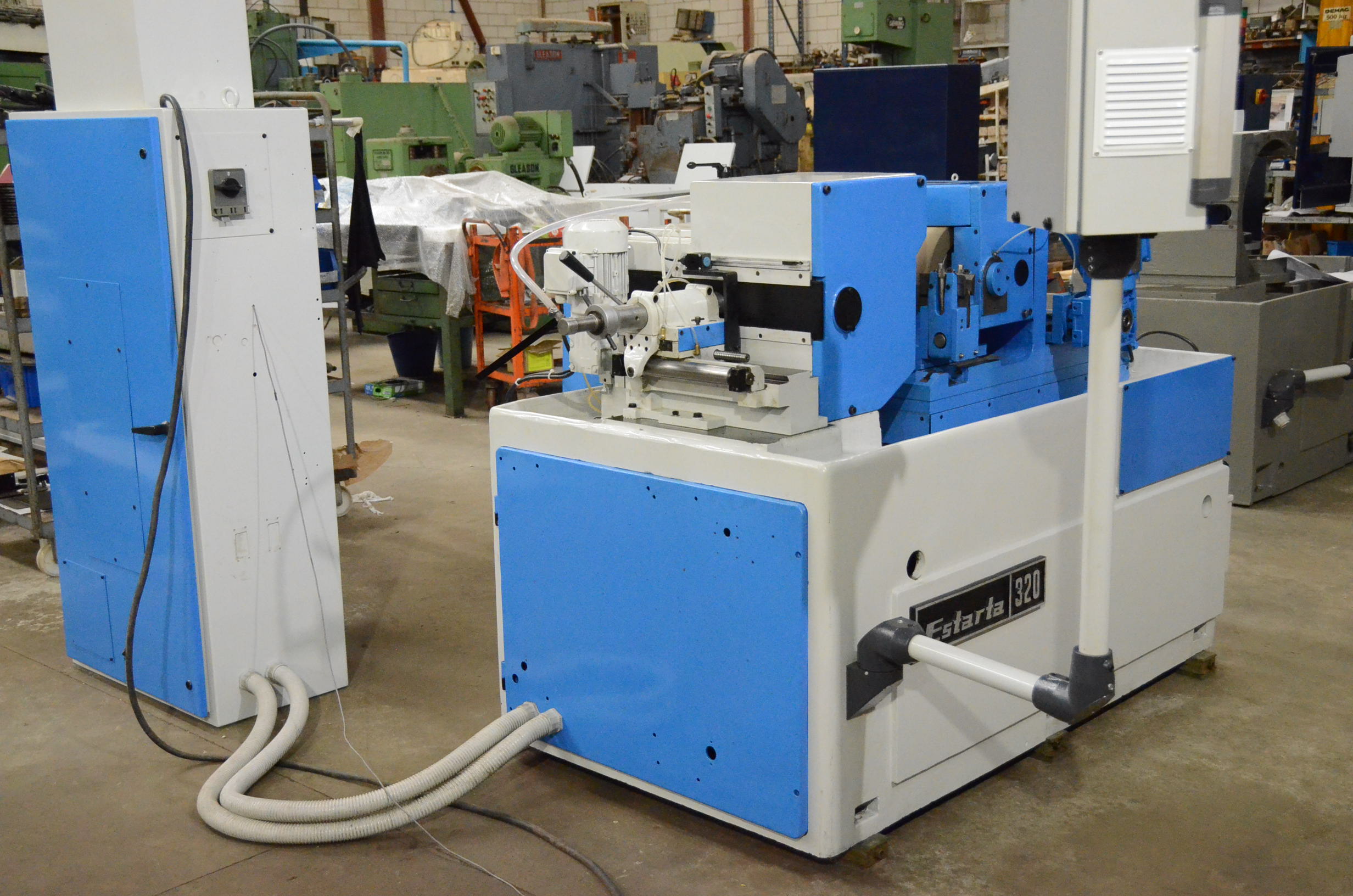

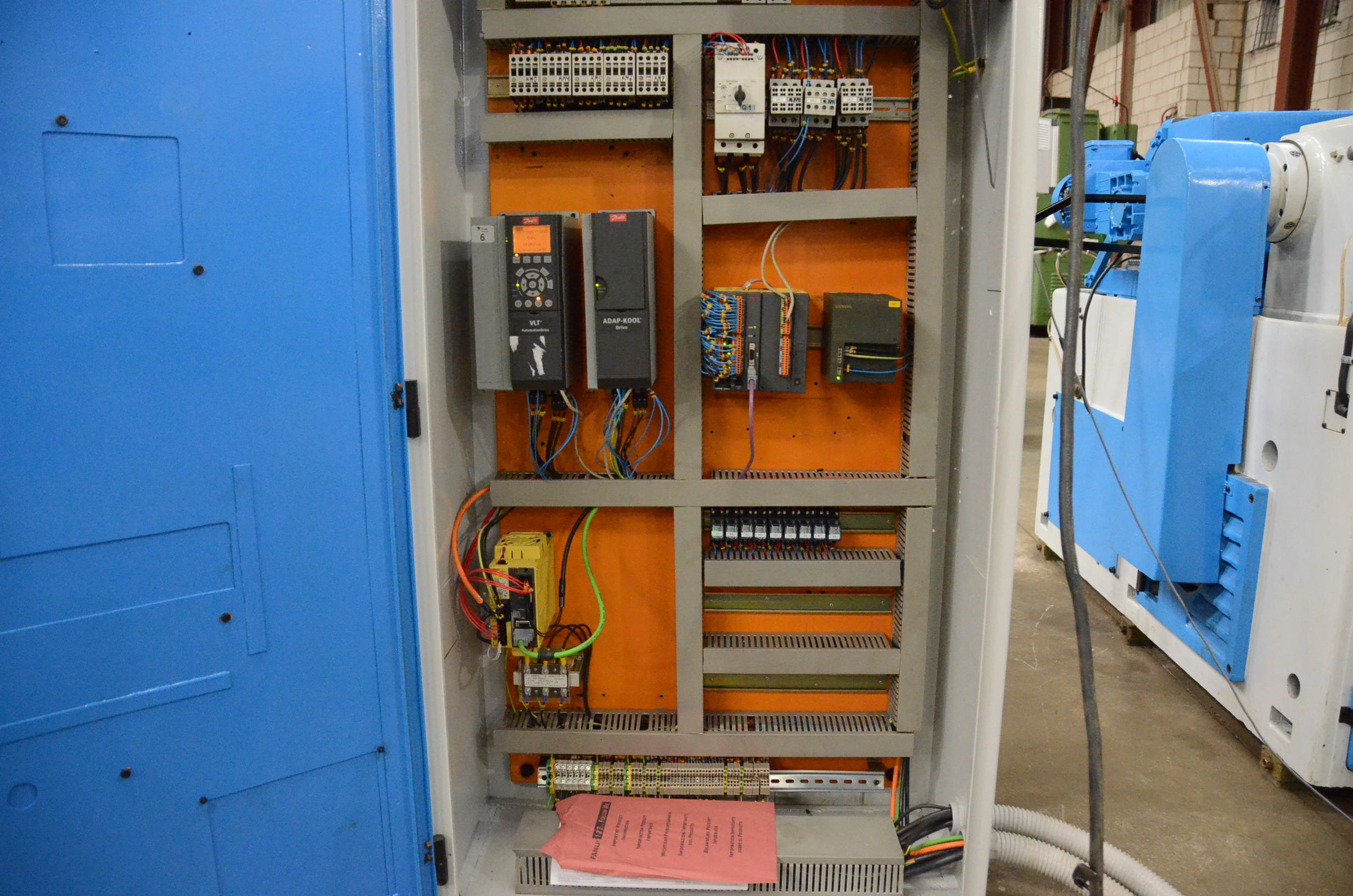

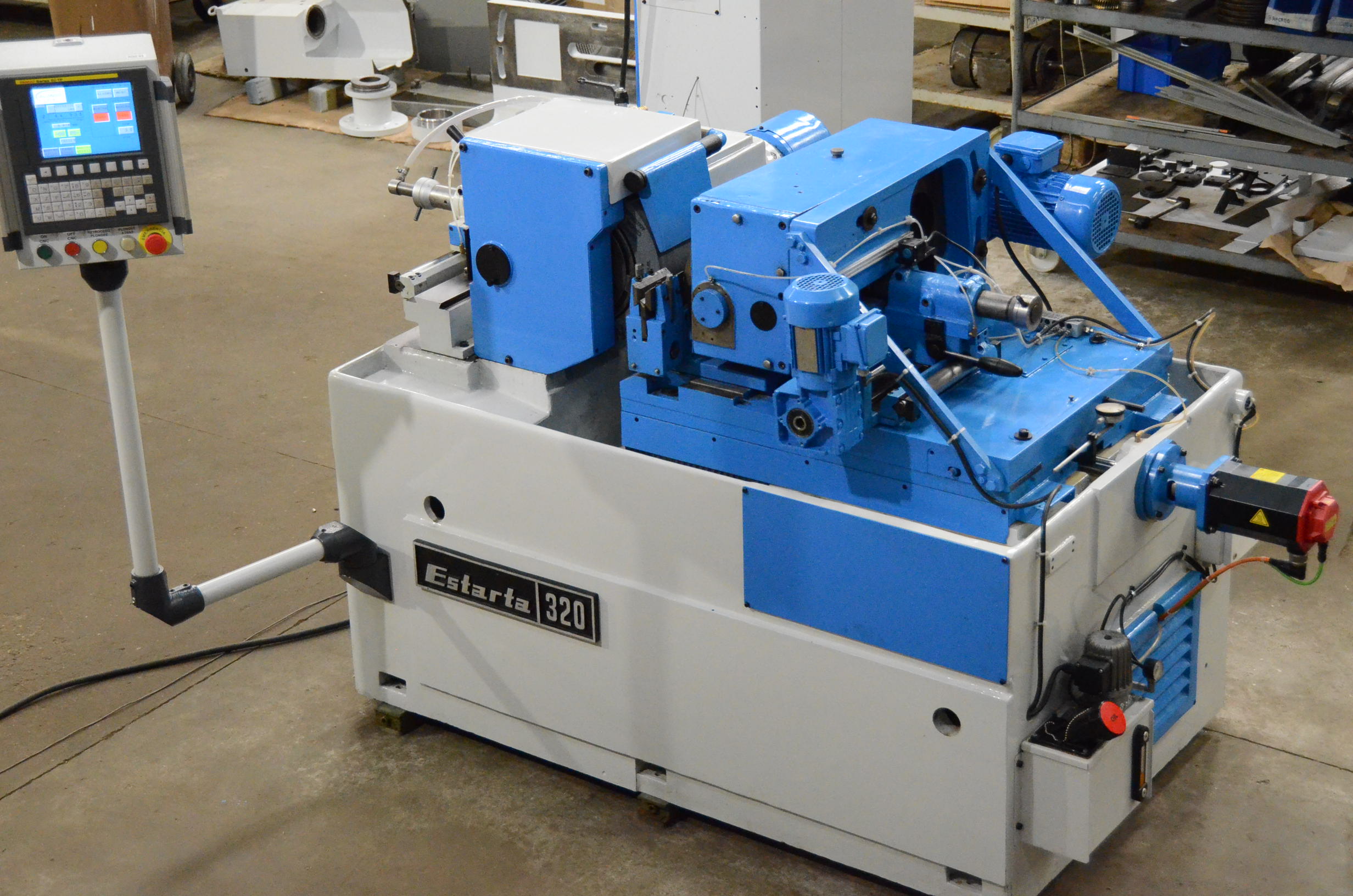

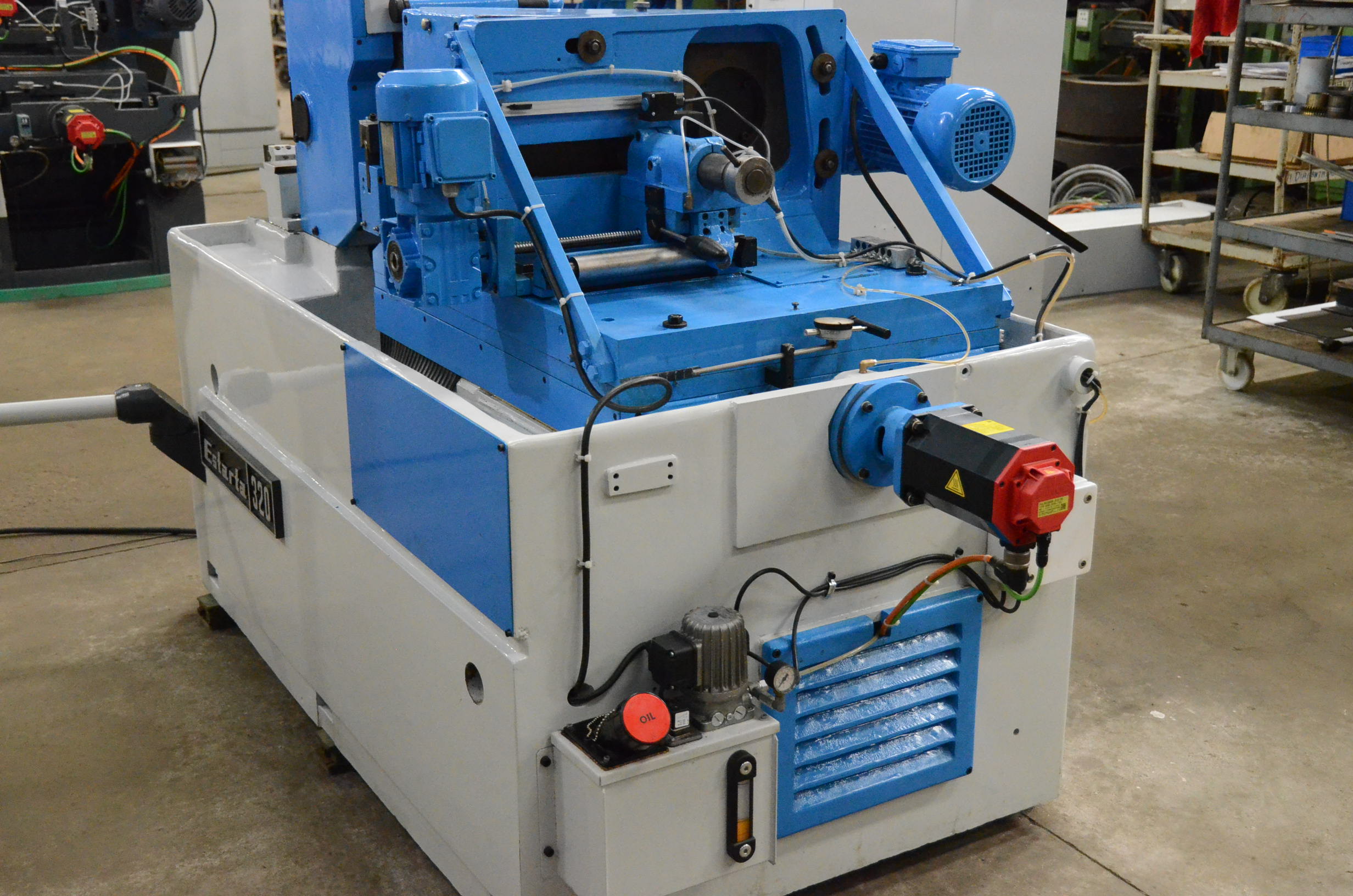

Centerless Grinders ESTARTA 320 # 4355
Featured
Centerless Grinders ESTARTA 320 # 4355
Location:Badajoz, Spain
Description
Enrolling rule holder, Grinding discs, Speed variator for the grinding wheel, OPTIONAL cooling: Fairing, Automatic centralized greasing, CNC 1 Year Warranty / Porta enfile rules, Saucers wheel holder, Refrigeration equipment OPTION: Protection,, automatic lubrication system, CNC, 1 year warranty
Specifications
| Manufacturer | ESTARTA |
| Model | 320 |
| Condition | Used |
| Stock Number | 4355 |
| Ø grinding wheel dimensions (od x id x width) | Ø 406 x Ø 203 x 200 mm |
| Grinding wheel dimensions (od x id x width) | Ø 406 x Ø 203 x 200 mm |
| Ø min / max to grinding | 1.5 / 100 mm |
| Ø min / max to rectify | 1.5 / 100 mm |
| Regulating wheel width | 200 mm |
| Min / max regulating wheel speed (r.p.m.) | 10/250 rpm |
| Min / max speed of regulating wheel (r.p.m.) | 10/250 rpm |
| Regulating wheel dimensions (od x id x width) | Ø 270 x Ø 140 x 200 mm |
| Grinding wheel width | 200 mm |
| Maximum infeed grinding length | 200 mm |
| Maximum length to be rectified in plongeé | 200 mm |
| Motor power grinding wheelhead | 15 kW |
| Grinding wheel head motor power | 15 kW |
| Long | 2020 mm |
| Width | 1300 mm |
| High | 1420 mm |
| Weight | 4200 Kg |
| Accessories included | Sliding portarlas, Cymbal grips, Speed variator for the drag wheel, Cooling equipment OPTIONAL: Fairing, Automatic centralized greasing, CNC 1 Year Warranty / Porta enfile rules, Saucers wheel holder, Refrigeration equipment OPTION: Protection,, automatic lubrication system, CNC, 1 year warranty |
